PLASTIC BEARING C8030-PEEKPSS


PEEK樹脂ベアリングC8030

PEEK樹脂ベアリングC8030


CHARACTERISTICS No lubricating oil needed due to self-lubricity of PEEK & fluorine plastic.
Excellent corrosion resistant plastic bearing
TEMPERATURE Heat characteristics of ETFE Thermoplastic fluoroplastic
・Heat distortion temperature 0.45MPa loading at 260 degree c.
・Melting point 285 degree c.
・Standard continuous use: temperature below 200 degree c.
REVOLUTIONS ・In atmosphere within 300 RPM
・Under water a few thousand RPM(Subject to condition)
CHEMICAL PROPERTIES Chemical resistance of stainless ball (SUS304)
・Weak against sulfuric acid, hydrochloric acid, hydrofluoric acid, oxalic acid.
 For details, please contact us.
PRE-LOAD ・Please use without applying preload as much as possible.

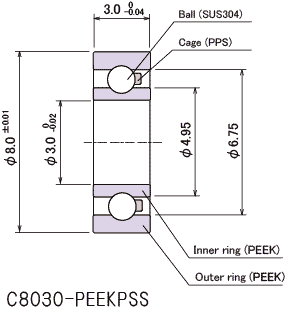

SPECIFICATIONS [Material] Inner/Outer ring: PEEK Balls: SUS304  Retainer: PPS
[Balls] 1.2 mm
[Retainer] P0578TK-PPS
USAGE ・Under water, solution
・Bearing used in clean room
・Corrosion-resistant environment
・Nonmagnetic environment

Specifications in this catalogue is subject to change without prior notice.
Please do not hesitate to make any request to our Venture Buisiness Division for calalogue, inquiry, quotation and order of our products.
