RESIN BEARING C220100-PEEK/ C260100-PEEK/ C300100-PEEK


PEEK樹脂ベアリング

PEEK樹脂ベアリング




  C260100-PEEKETA                    C300100-PEEKPKA
PEEK樹脂ベアリング

CHARACTERISTICS No lubricating oil needed due to self-lubricity of PEEK & fluorine resin.
Excellent corrosion resistant resin bearing
TEMPERATURE Heat characteristics of ETFE Thermoplastic fluoroplastic
・Heat distortion temperature 0.45MPa loading at 92 degree c.
・Melting point 263 degree c.
・Standard continuous use: temperature from 90 to 150 degree c. (Subject to conditions)
REVOLUTIONS ・C260100-PEEKETA In atmosphere within 300 RPM Radial load 40N(4.08kgf) 3 million revolutions

・Under water a few thousand RPM (subject to condition)
CHEMICAL PROPERTIES Chemical resistance of ceramic ball
・Resistant to most chemicals but weak against hydrochloric acid, hydrofluoric acid, and strong alkali.
 For details, please contact us.
PRE-LOAD ・Please use without applying preload as much as possible.

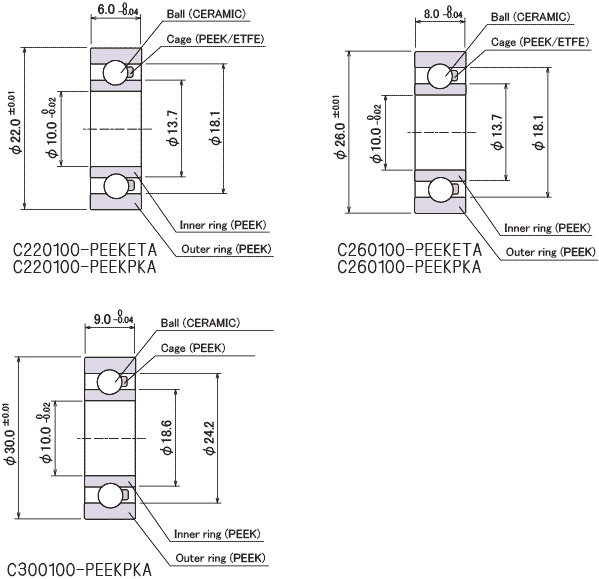

SPECIFICATIONS 【C220100-PEEKETA】
[Material] Inner/Outer ring: PEEK Balls: Ceramic Retainer: fluoroplastic
[Balls] 1/8
[Retainer] P1568TK-ETFE

【C220100-PEEKPKA】
[Material] Inner/Outer ring: PEEK Balls: Ceramic  Retainer: PEEK
[Balls] 1/8
[Retainer] P1568TK-PEEK

【C260100-PEEKETA】
[Material] Inner/Outer ring: PEEK Balls: Ceramic  Retainer: fluoroplastic
[Balls] 1/8
[Retainer] P1568TK-ETFE

【C260100-PEEKPKA】
[Material] Inner/Outer ring: PEEK Balls: Ceramic  Retainer: PEEK
[Balls] 1/8
[Retainer] P1568TK-PEEK

【C300100-PEEKPKA】
[Material] Inner/Outer ring: PEEK Balls: Ceramic  Retainer: PEEK
[Balls] 5/32
[Retainer] P2108TK-PEEK
USAGE ・Under water, solution
・Bearing used in clean room
・Corrosion-resistant environment
・Nonmagnetic environment

Specifications in this catalogue is subject to change without prior notice.
Please do not hesitate to make any request to our Venture Buisiness Division for calalogue, inquiry, quotation and order of our products.
