PLASTIC BEARING C19060-PEEK


PEEK樹脂ベアリングC19060

PEEK樹脂ベアリングC19060


CHARACTERISTICS No lubricating oil needed due to self-lubricity of PEEK & fluorine plastic.
Excellent corrosion resistant plastic bearing
TEMPERATURE Heat characteristics of ETFE Thermoplastic fluoroplastic
・Heat distortion temperature 0.45MPa loading at 92 degree c.
・Melting point 263 degree c.
・Standard continuous use: temperature from 90 to 150 degree c. (Subject to conditions)
REVOLUTIONS ・In atmosphere within 300 RPM
・Under water a thousand RPM (subject to condition)
CHEMICAL PROPERTIES Chemical resistance of ceramic ball
・Resistant to most chemicals but weak against hydrochloric acid, hydrofluoric acid, and strong alkali.
 For details, please contact us.
PRE-LOAD ・Please use without applying preload as much as possible.

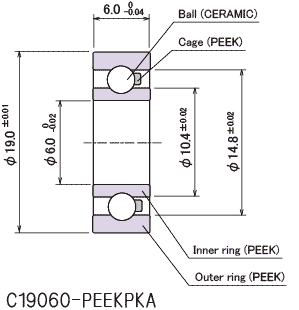

SPECIFICATIONS [Material] Inner/Outer ring: PEEK Balls: Ceramic  Retainer: PEEK
[Balls] 1/8
[Retainer] P1216TK-PEEK
USAGE ・Under water, solution
・Bearing used in clean room
・Corrosion-resistant environment
・Nonmagnetic environment

Specifications in this catalogue is subject to change without prior notice.
