RESIN BEARING C9040-PEEK


PEEK樹脂ベアリングC9040

PEEK樹脂ベアリングC9040


CHARACTERISTICS No lubricating oil needed due to self-lubricity of PEEK & fluorine resin.
Excellent corrosion resistant resin bearing
TEMPERATURE Heat characteristics of ETFE Thermoplastic fluoroplastic
・Heat distortion temperature 0.45MPa loading at 92 degree c.
・Melting point 263 degree c.
・Standard continuous use: temperature from 90 to 150 degree c. (Subject to conditions)
STANDARD OF USE ・In atmosphere within 300 RPM
・Under water a few thousand RPM(subject to condition)
CHEMICAL PROPERTIES Chemical resistance of stainless ball (SUS304)
・Weak against sulfuric acid, hydrochloric acid, hydrofluoric acid, oxalic acid.
 For details, please contact us.
PRE-LOAD ・Please use without applying preload as much as possible.

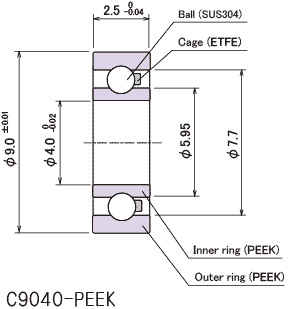

SPECIFICATIONS [Material] Inner/Outer ring: PEEK Balls: SUS304  Retainer: fluoroplastics
[Balls] 1.2 mm
[Retainer] P0668TK-ETFE
USAGE ・Under water, solution
・Bearing used in clean room
・Corrosion-resistant environment
・Nonmagnetic environment

Specifications in this catalogue is subject to change without prior notice.
Please do not hesitate to make any request to our Venture Buisiness Division for calalogue, inquiry, quotation and order of our products.
