RESIN BEARING C22080-PEEK


PEEK樹脂ベアリングC22080
 C22080-PEEKETA

PEEK樹脂ベアリングC22080


CHARACTERISTICS No lubricating oil needed due to self-lubricity of PEEK & fluorine resin.
Excellent corrosion resistant resin bearing
TEMPERATURE Heat characteristics of ETFE Thermoplastic fluoroplastic
・Heat distortion temperature 0.45MPa loading at 92 degree c.
・Melting point 263 degree c.
・Standard continuous use: temperature from 90 to 150 degree c. (Subject to conditions)
LOAD ・Radial load durability 49.0N (5kg)
REVOLUTIONS ・In atmosphere within 300 RPM
・In atmosphere within 1500 RPM (Inner ring revolution)
Radial load 5N 1 million revolutions
・Under water a thousand RPM (subject to condition)
CHEMICAL PROPERTIES Chemical resistance of ceramic ball
・Resistant to most chemicals but weak against hydrochloric acid, hydrofluoric acid, and strong alkali.
 For details, please contact us.
PRE-LOAD ・Please use without applying preload as much as possible.

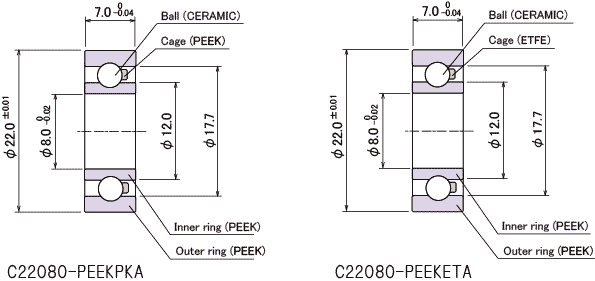

SPECIFICATIONS 【C22080-PEEKPKA】
[Material] Inner/Outer ring: PEEK Balls: Ceramic  Retainer: PEEK
[Balls] 5/32
[Retainer] P1436TK-PEEK

【C22080-PEEKETA】
[Material] Inner/Outer ring: PEEK Balls: Ceramic  Retainer: fluoroplastic
[Balls] 5/32
[Retainer] P608TK-ETFE
USAGE ・Under water, solution
・Bearing used in clean room
・Corrosion-resistant environment
・Nonmagnetic environment

Specifications in this catalogue is subject to change without prior notice.
