RESIN BEARING B6020




樹脂ベアリングB6020

CHARACTERISTICS Bearing made from POM, self lubricating material. No lubricating oil needed.
Clean bearing assembled in Cleanroom.
Price depends on required accuracy, amount of inner clearance, material and quantity.

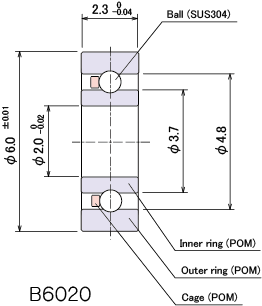

SPECIFICATIONS [Material]Inner&Outer rings, Retainer/POM
Balls/SUS304
[Balls]0.8mm
[Retainer]P0428TK-POM
USAGE ・Bearing used in Cleanroom.
・Corrosion resistant environment
・Nonmagnetism environment
・Under water, solution
・Bearing reducing weight
ATTENTION ・Not for high speed rotation, heavy load.
・Material change is needed for use in strong acid, strong alkali.
STANDARD
OF USE
・Radial load durability 0.15N
Rotation speed 3000 RPM
1 million revolutions
・Radial load durability 10N
Rotation speed 300 RPM
1 million revolutions







Specification and size of this product is subject to change without any advanced notice.


For conditions such as required working accuracy, amount of inner clearance, material of parts, cleanness of bearing, please feel free to contact us.
