yCylinder pocket resin cagesz

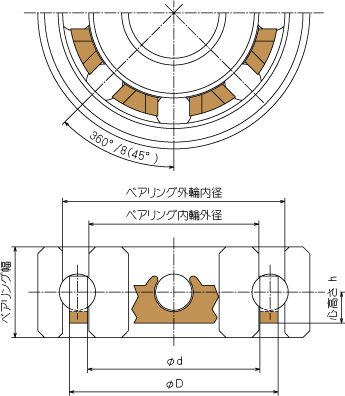

@It is our original resin retainer which holds balls for bearing in cylindrical shape and even number of equally divided pockets.
@The dimensions of resin cage are slightly different according to material.


Part Number Outer Dia.
‚c
Inner Dia.
‚„
Height
‚ˆ
Ball size Number of pockets Available resin material
POM ETFE PEEK¦ PA66GF U-PE Others
P0428TK 4.6 3.8 0.7 0.8 8 › › › › › PAI
P0668TK 7.2 6.0 1.0 1.2 8 › › › › › @
P0768TK 8.2 7.15 0.9 1.0 8 › › › › › @
P0906TK 9.8 8.2 1.6 2.381(3/32") 6 › › › › › @
P1216TK 13.4 10.8 2.3 3.175(1/8") 6 › › › › › @
P1436TK 16 12.6 2.6 3.969(32/5") 6 › › › › › @
P1568TK 16.9 14.3 2.2 3.175(1/8") 8 › › › › › @
P2108TK 23 19 2.7 3.969(5/32") 8 › › › › › @
¦PEEK is natural grade, but also glassfiber reinforced and carbon fiber reinforced products are available.
